Migrate from MySQL to MSSQL

This guide outlines the steps and prerequisites required to migrate a MideyeServer database from MySQL to MSSQL.

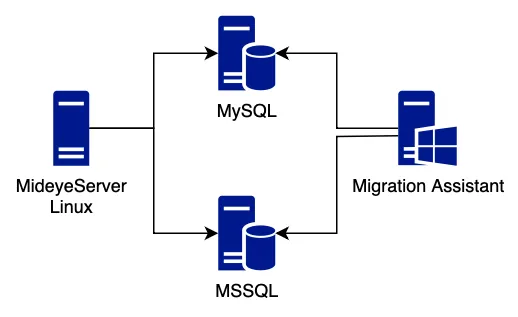

MySQL to MSSQL Migration

Prerequisites

Section titled “Prerequisites”
  • MSSQL Server (Standard or higher) with MSSQL Agent running.
  • MideyeServer instance for populating the MSSQL database (Note: This will cause downtime during population).
  • Network Access: MideyeServer must be able to connect to the MSSQL server.
  • Keystore Access: If deploying a new MideyeServer after migration, ensure it is configured with the same keystore.p12 file and corresponding keystore password, specified in the application-prod.yml file, of the current MySQL-based MideyeServer.
  • Windows Client with access to both MySQL and MSSQL servers.
  • Microsoft SQL Server Migration Assistant (SSMA) for MySQL installed on the Windows client. Download here
  • Credentials for both MySQL and MSSQL databases.

Steps

Section titled “Steps”
  1. Install SSMA: Install Microsoft SQL Server Migration Assistant for MySQL on a Windows client.
  2. Create MSSQL Database: On the MSSQL server, create a new database for MideyeServer.
  3. Prepare Config Files:
    • On MideyeServer, copy application-prod.yml into two new files: application-prod-mssql.yml and application-prod-mysql.yml.
  4. Configure MSSQL YAML: Update application-prod-mssql.yml with your MSSQL settings.
  5. Test Connectivity: From the MideyeServer, test the MSSQL connection:
Terminal window
/opt/mideyeserver6/config# telnet 172.26.128.1 1433
Trying 172.26.128.1...
Connected to 172.26.128.1.
Escape character is '^]'.

A successful connection will show Connected to 172.26.128.1.

Populating MSSQL

Section titled “Populating MSSQL”
  1. Stop MideyeServer: This will cause downtime.
  2. Switch to MSSQL Config: Copy application-prod-mssql.yml to application-prod.yml.
  3. Start MideyeServer: The server will now populate the MSSQL database.
  4. Check Logs: Wait until the MideyeServer logs confirm it is running.
  5. Verify Tables in MSSQL: Check the MSSQL database; new tables like dbo.accounting and dbo.al_approver_group should be present.
  6. Revert to MySQL Config (Optional): If needed, stop MideyeServer, then copy application-prod-mysql.yml to application-prod.yml and restart it. This allows MideyeServer to remain operational while the data migration is performed on the side.

Migrating the Data

Section titled “Migrating the Data”
  1. Open SSMA: On the Windows client, start Microsoft SQL Server Migration Assistant for MySQL.
  2. Create a New Project in SSMA.
  3. Connect to MySQL with the MySQL credentials.
  4. Connect to MSSQL using the newly created/populated MSSQL database.
  5. Select MySQL Database: Choose the Mideye database from MySQL as the source.

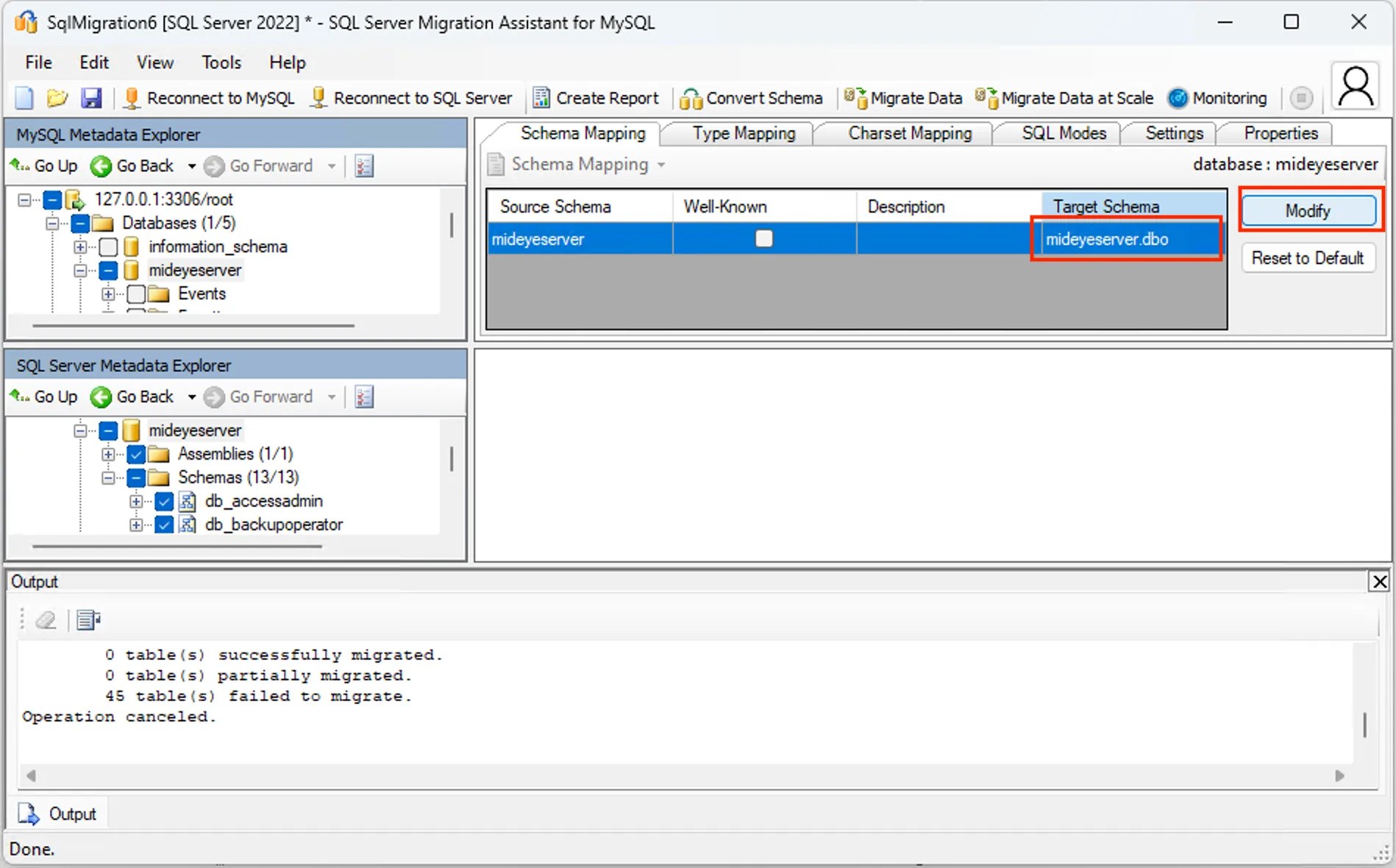

  6. Schema Mapping: Adjust the schema mapping so the MSSQL target schema is dbo instead of databasename.databasename.

SSMA schema mapping dialog with dbo selected as the MSSQL target schema

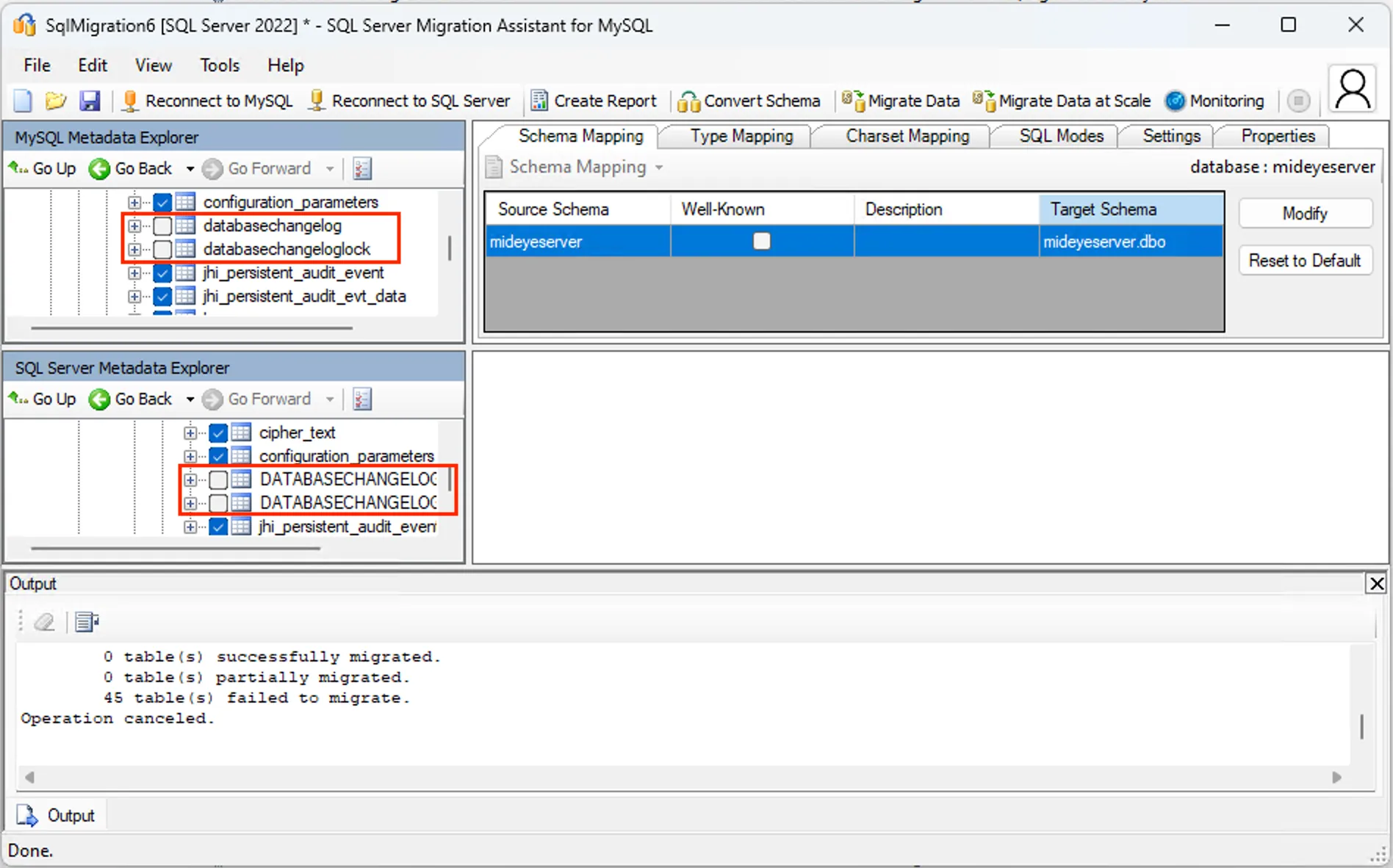

  1. Exclude ChangeLog Tables: Deselect DATABASECHANGELOG and DATABASECHANGELOGLOCK on both the MySQL and MSSQL sides.

SSMA table selection with DATABASECHANGELOG and DATABASECHANGELOGLOCK deselected

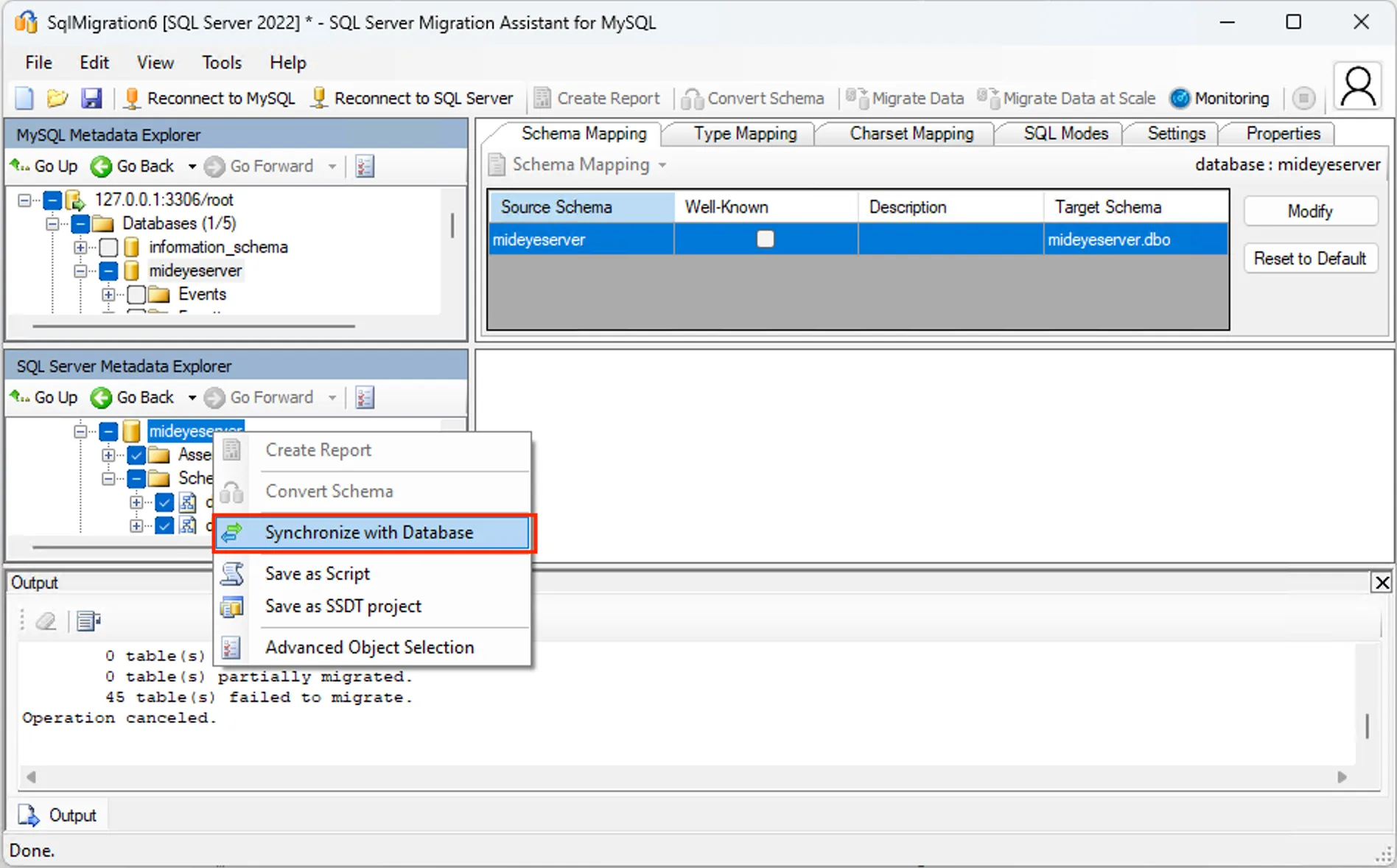

  1. Synchronize with Database: Right-click the MSSQL target database and select Synchronize with Database.

SSMA context menu showing Synchronize with Database option

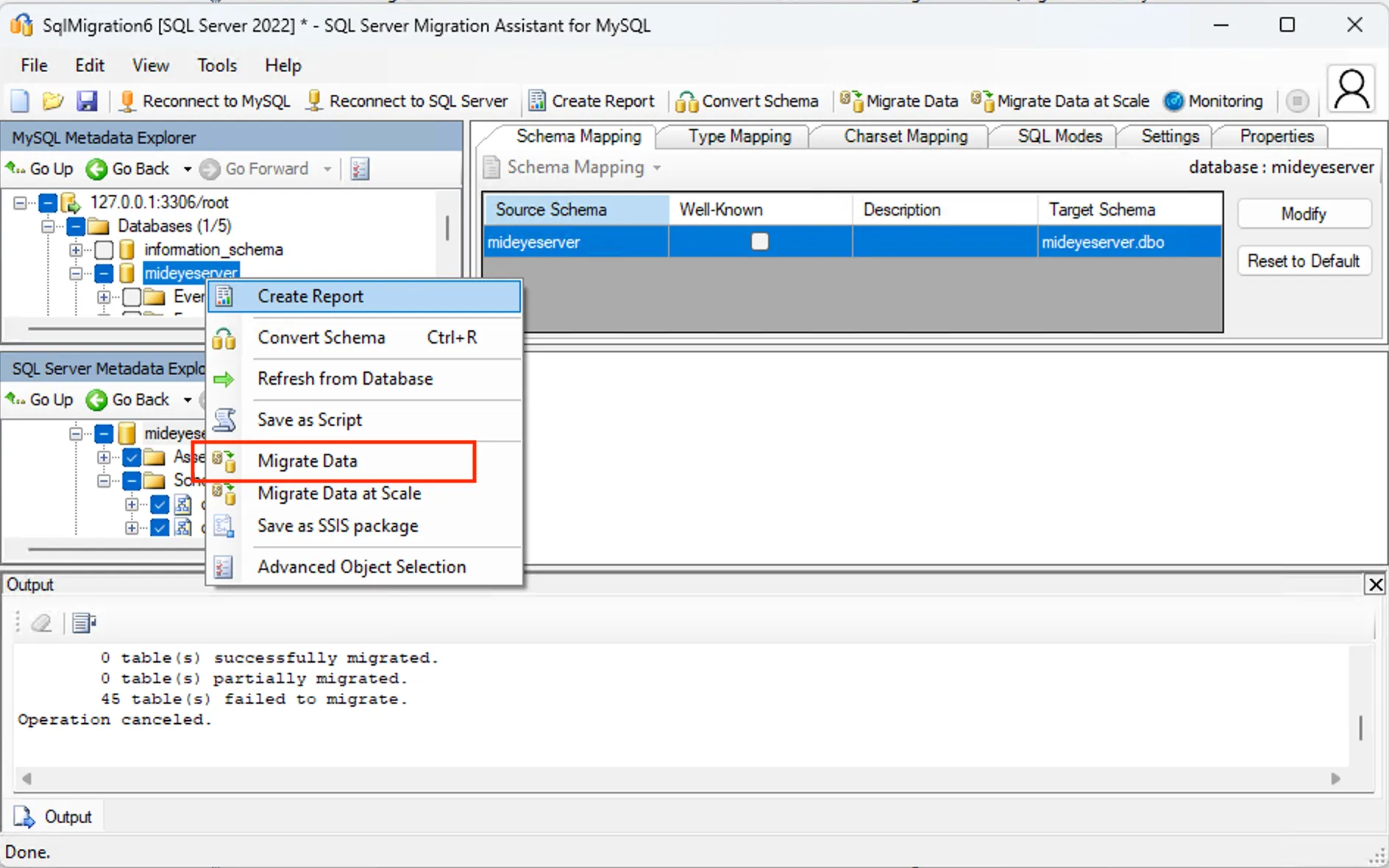

  1. Migrate Data: Back in SSMA, choose the MySQL source database and select Migrate Data.

SSMA Migrate Data option selected for the MySQL source database

  1. Credentials: Enter the MySQL and MSSQL credentials as prompted.

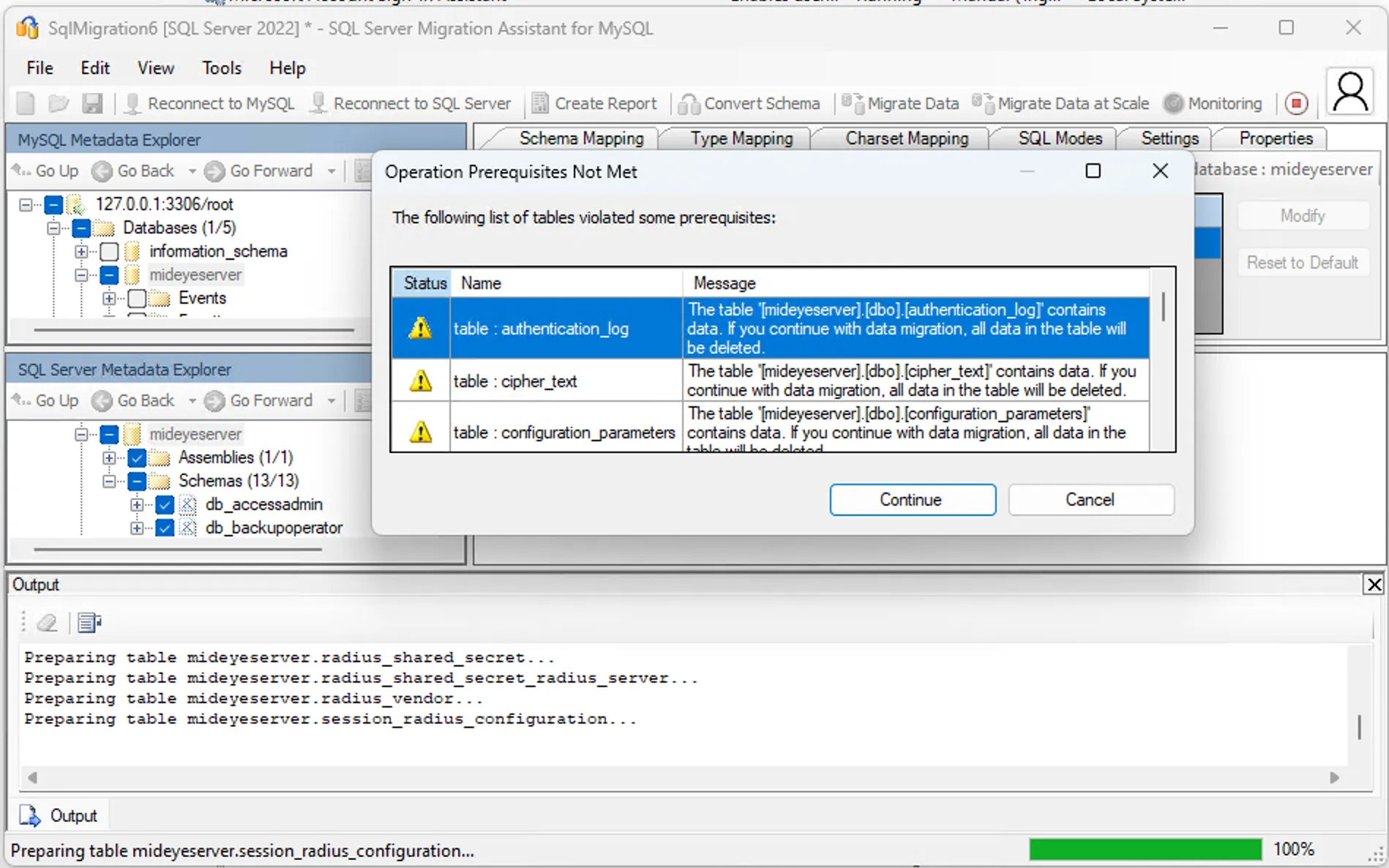

  2. Ignore Warnings: If you see “Operation prerequisites not met,” continue the migration.

SSMA showing Operation prerequisites not met warning that can be safely ignored

  1. The data is now migrated — Mideye Server can use MSSQL instead of MySQL.

Sample Configuration Files

Section titled “Sample Configuration Files”

For complete database configuration examples and detailed instructions, see Database Configuration.

MSSQL Configuration (application-prod-mssql.yml)

spring:
  devtools:
    restart:
      enabled: false
    livereload:
      enabled: false
  datasource:
    type: com.zaxxer.hikari.HikariDataSource
    driver: com.microsoft.sqlserver.jdbc.SQLServerDriver
    url: jdbc:sqlserver://172.26.128.1:1433;databaseName=MideyeServer_DB;authenticationScheme=NTLM;useNTLMv2=true;user=PLACEHOLDER_DO_NOT_CHANGE_OR_REMOVE;password=PLACEHOLDER_DO_NOT_CHANGE_OR_REMOVE;encrypt=false
    username: mideyeuser
    password: 'SUPER_SECRET_PASSWORD'
    hikari:
      connection-test-query: SELECT 1
      initializationFailTimeout: 10000
      data-source-properties:
        cachePrepStmts: true
        prepStmtCacheSize: 250
        prepStmtCacheSqlLimit: 2048
        useServerPrepStmts: true
  jpa:
    database-platform: org.hibernate.dialect.SQLServer2012Dialect
    database: SQL_SERVER
    show-sql: false
    properties:
      hibernate.id.new_generator_mappings: true
      hibernate.cache.use_second_level_cache: false
      hibernate.cache.use_query_cache: false
      hibernate.generate_statistics: false
  liquibase:
    contexts: prod
  mail:
    host: localhost
    port: 25

MySQL Configuration (application-prod-mysql.yml)

spring:
  devtools:
    restart:
      enabled: false
    livereload:
      enabled: false
  datasource:
    type: com.zaxxer.hikari.HikariDataSource
    url: jdbc:mariadb://172.26.128.1:3306/MideyeServer_DB?sslMode=TRUST
    username: mideyeuser
    password: 'SUPER_SECRET_PASSWORD'
    hikari:
      initializationFailTimeout: 10000
      data-source-properties:
        cachePrepStmts: true
        prepStmtCacheSize: 250
        prepStmtCacheSqlLimit: 2048
        useServerPrepStmts: true
        max-lifetime: 600000
  jpa:
  liquibase:
    contexts: prod
  mail:
    host: localhost
    port: 25
